Copper Inlay PCB

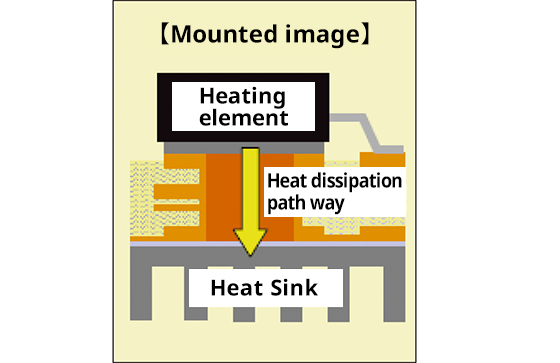

Copper inlay PCB can release heat from heater elements mounted on an electronic circuit board through copper inlays to a bottom side heat sink.
In addition, components can be mounted on the upper part of the through-hole by plating that part.

Copper Inlay PCB


  • High heat dissipation using copper inlays


  • Power device driving circuits
  • ABS
  • EPS
  • PCU


Stackup Example

Heat radiation

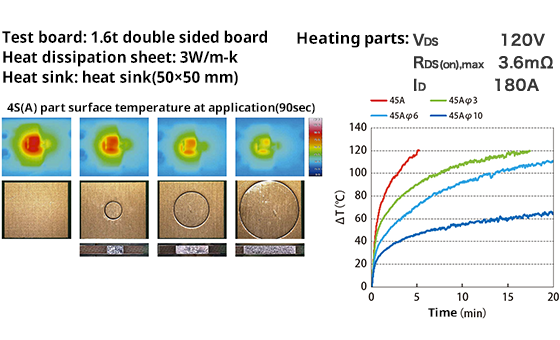

Heat dissipation properties
