Heavy Copper PCB

PCBs in which a large electrical current can flow are required for solar batteries used for solar power generation and electronic control of high-power motors for eco-cars. PCBs supporting large electrical currents have a much thicker copper pattern for the circuit than conventional ones. Meiko carries various types of copper PCBs (with up to 200 μm copper thickness) used for large electric current units that can support regular electric current over 50A.

Heavy Copper PCB

Features

  • Large electric current supported
  • Because two types of circuits can be formed on a single layer, high-density wiring is possible with heavy copper (composite heavy copper PCBs)

Applications

  • Hybrid cars
  • High power motor control unit of electric vehicles
  • Solar batteries on a solar panel

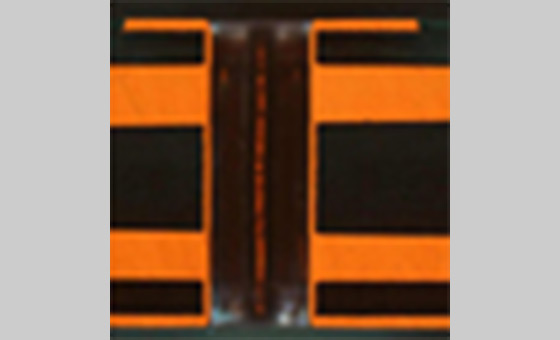

Cross section

Cross section

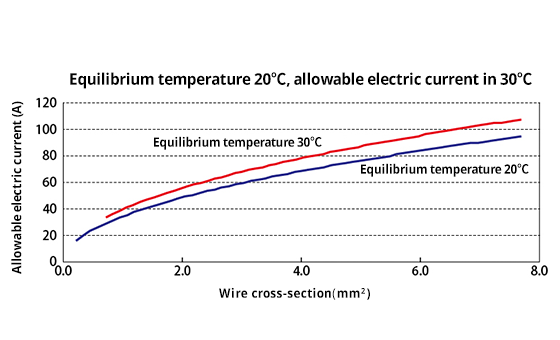

Allowable electric current

Allowable electric current

Related products
