LETHER-TOP
Introduction video

Overview (Work area: 270x380 model)

Product Name	LETHER-TOP
Construction method	Trowel type
Robot Type	Orthogonal type
Number of axes	5 axes (X, Y, Z, θ, solder feed)
Solder Diameter	0.3～1.2㎜
Heater Capacity	Choose from 130/260/390W
Robot dimensions （W:D:H）	570×635×891　[㎜]
weight	70Kg
power supply	AC 100V 50/60Hz

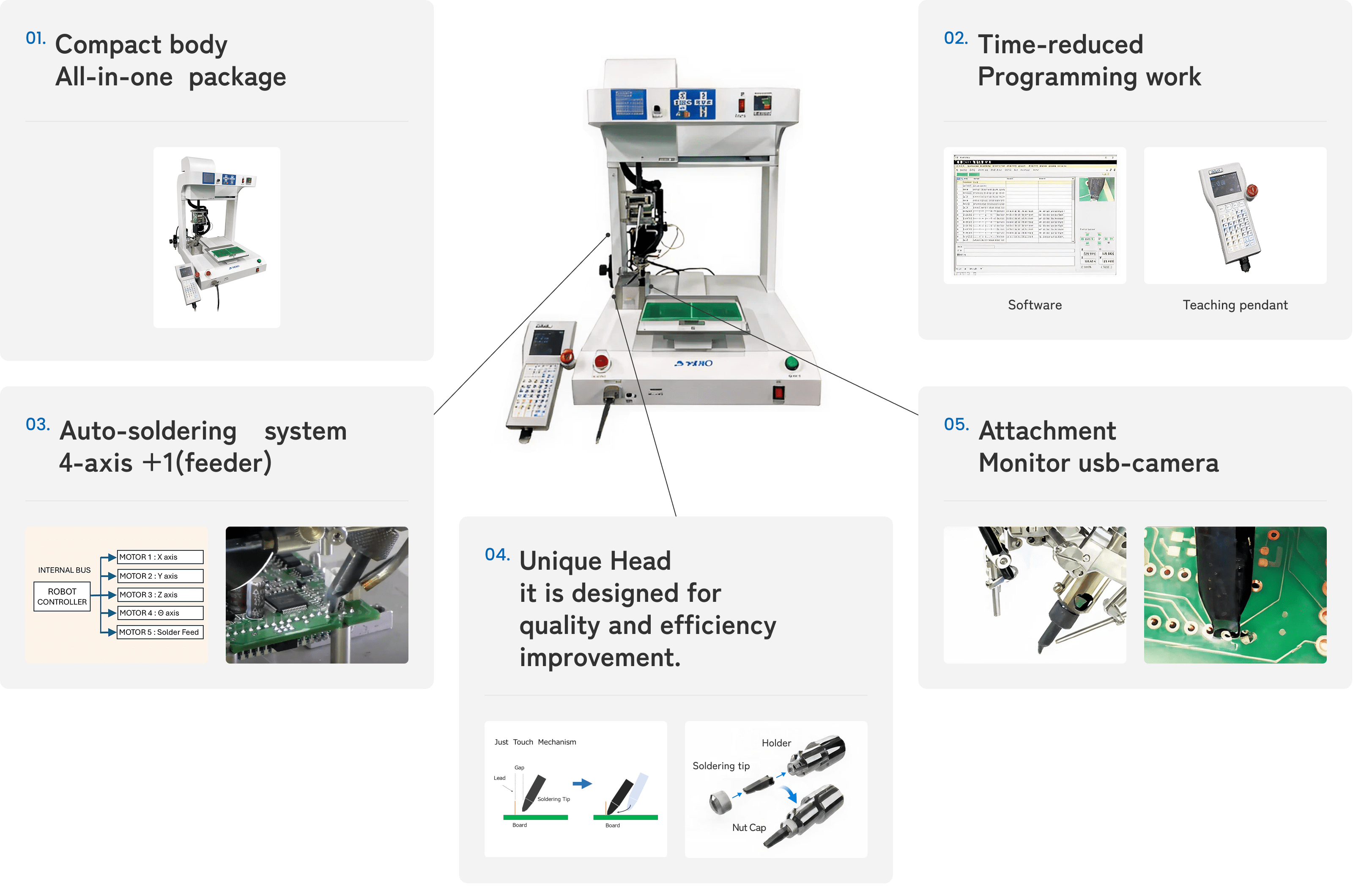

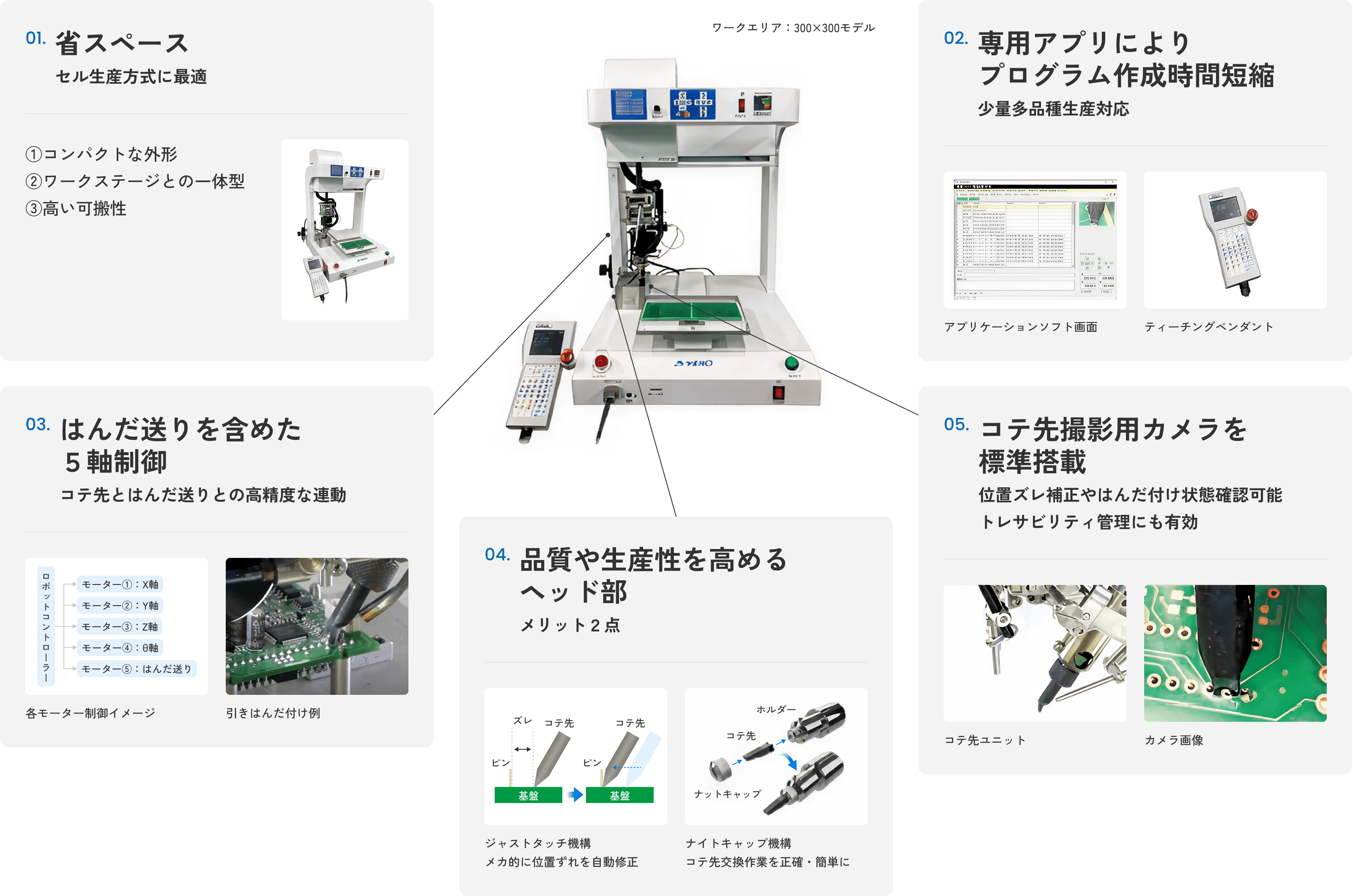

Features

Standard composition

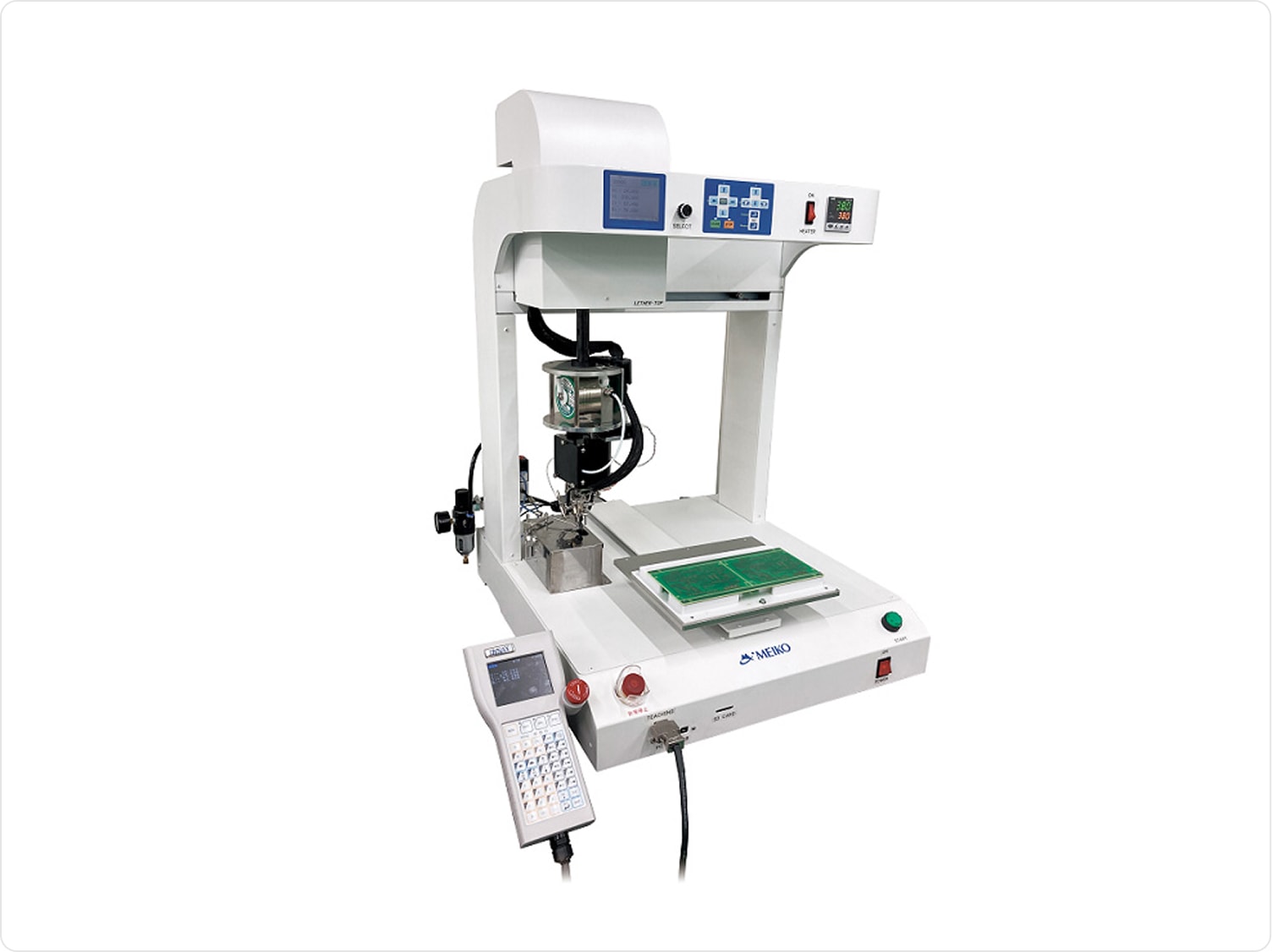

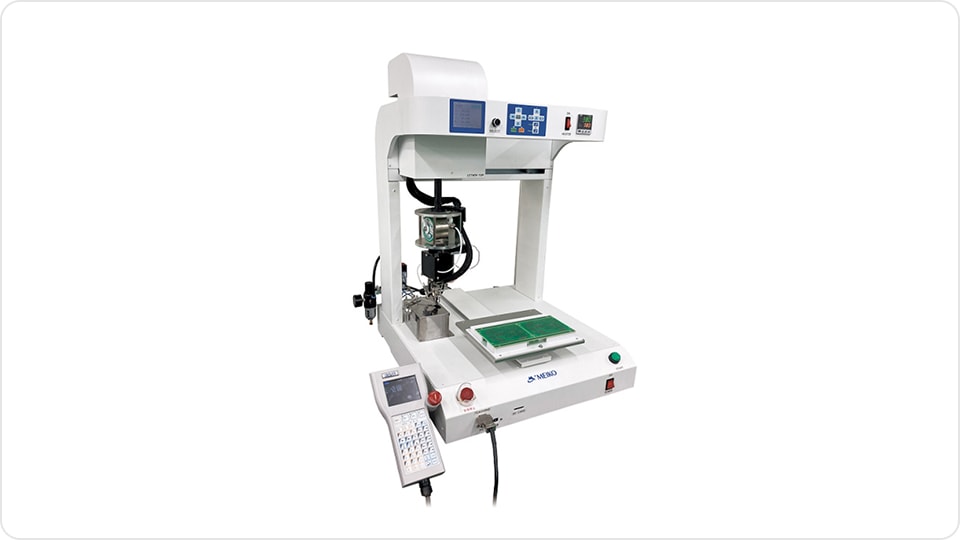

①Robot body

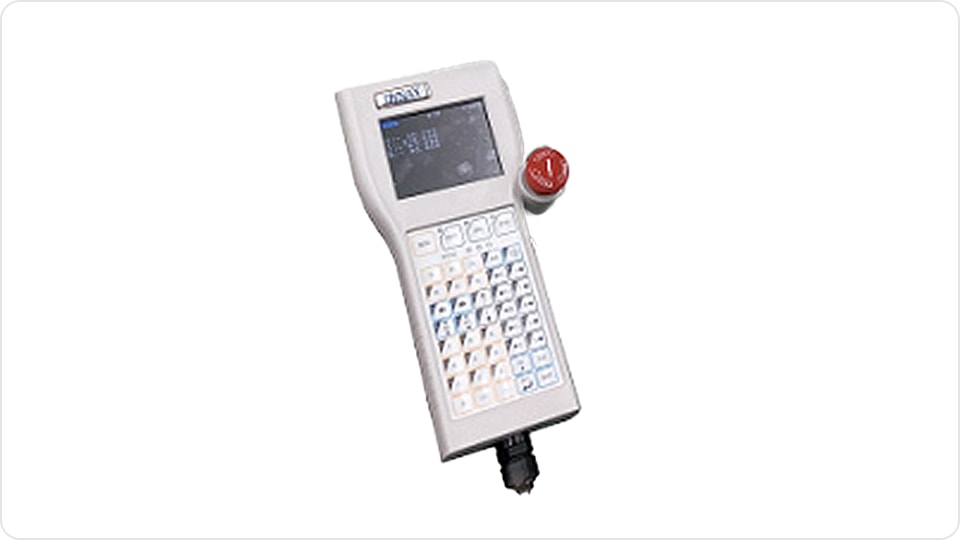

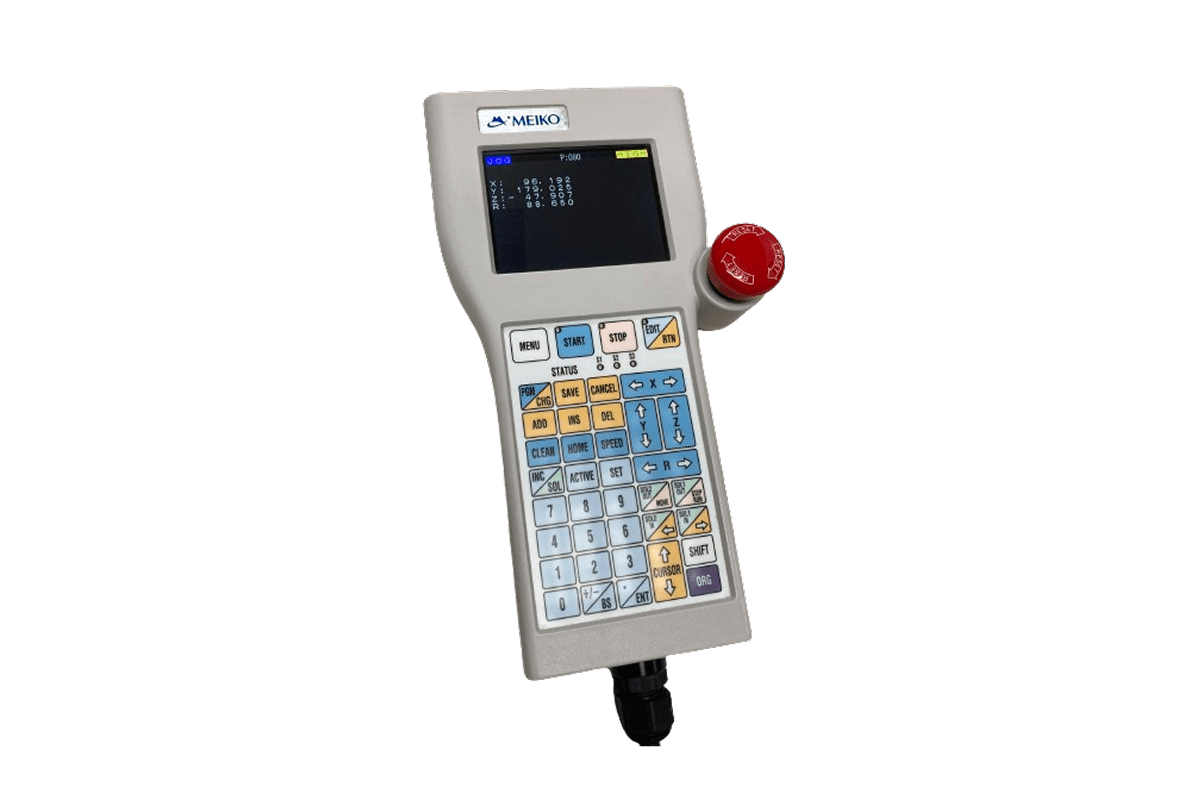

②Teaching pendant

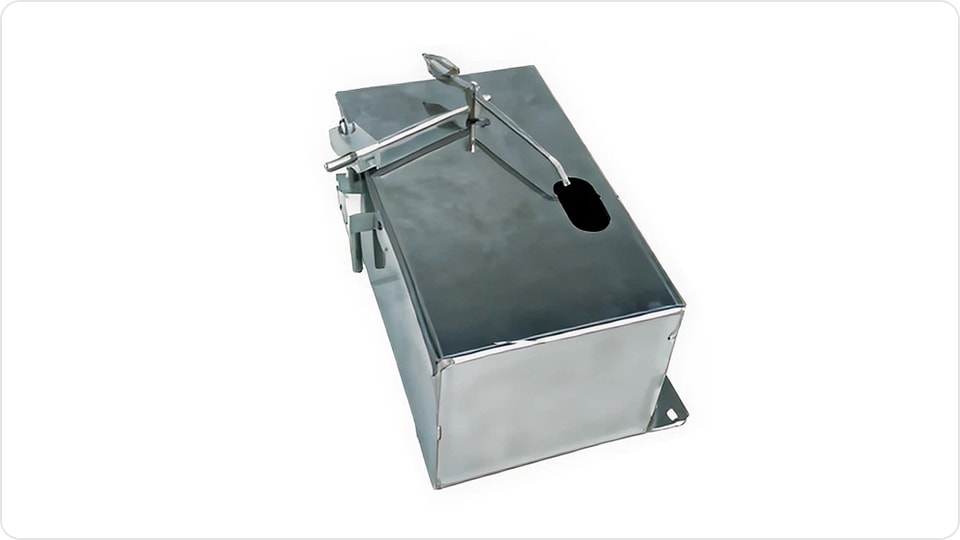

③Cleaning box

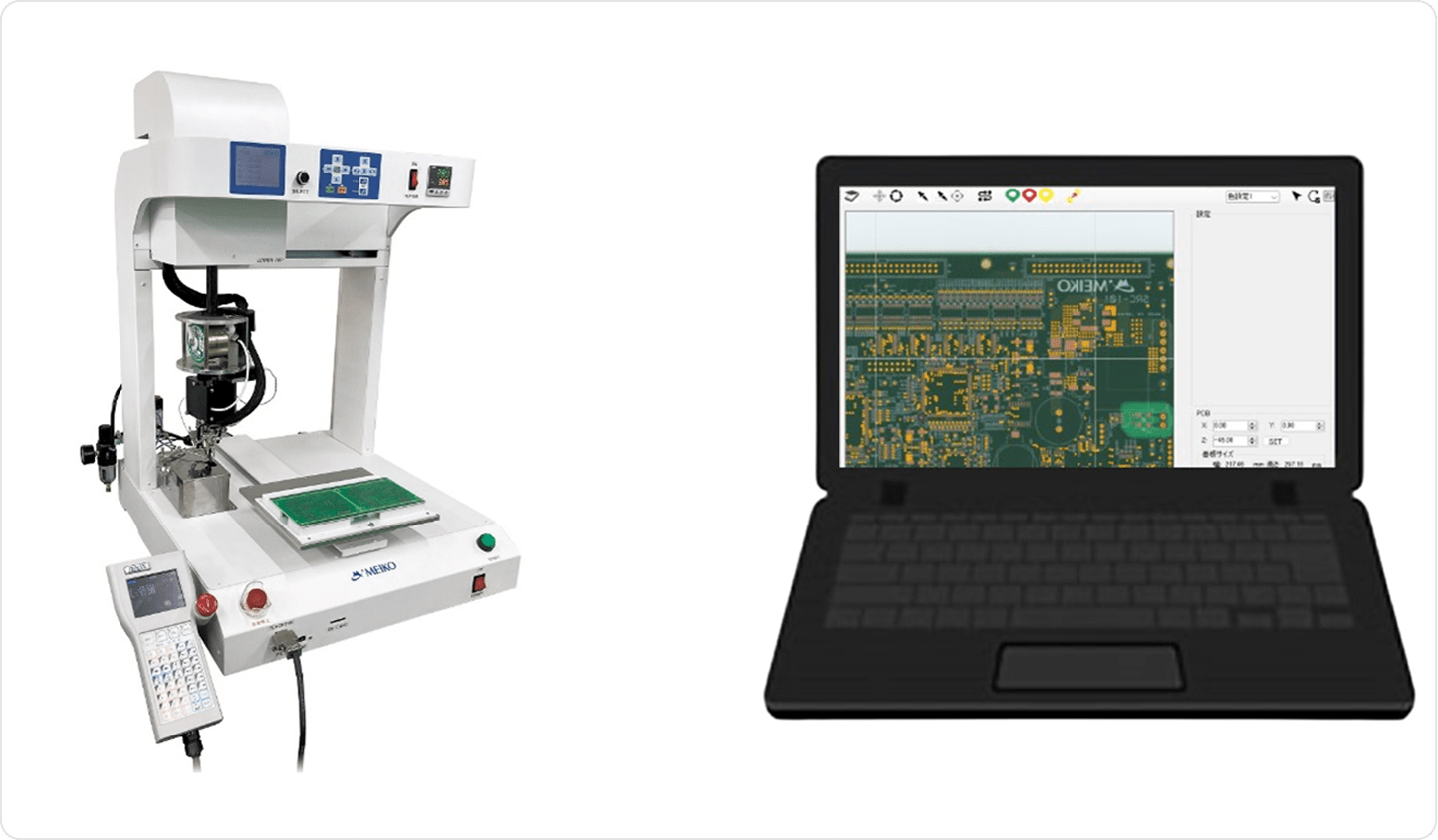

④Windows app *PC not included

option

Automatic soldering program creation
software
LETHER-Navi
[Patented]

overview

We have developed application software that makes it possible to easily create soldering programs on a PC screen, eliminating the need for teaching, which was previously a time-consuming process when using a soldering robot.

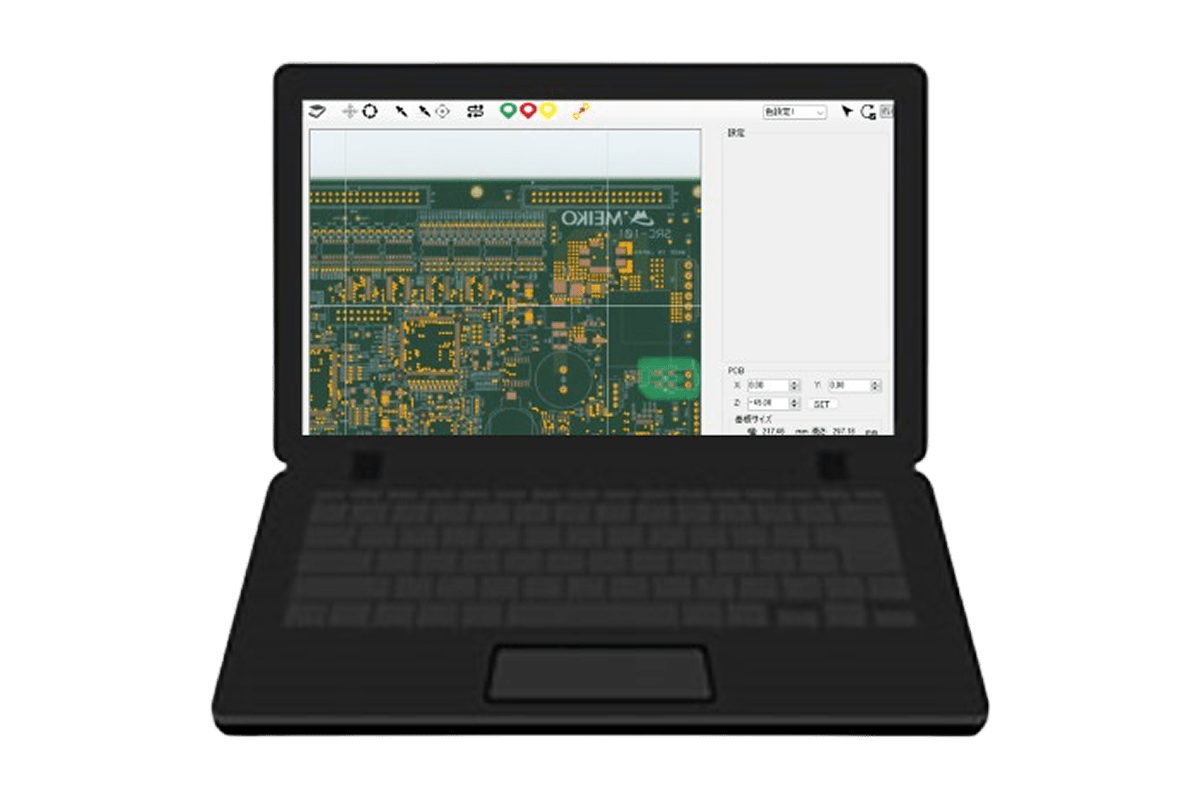

Image of LETHER-Navi software for automatically creating soldering programs

Features

01.

Easy programming on the PC screen

02.

NC data is used flexibly to improve the position accuracy

Image of improving positional accuracy by utilizing NC data

03.

Automatically sets the optimum soldering route

Automatically setting the optimum soldering route

04.

Drag solder compatible

05.

Editing by grouping is possible

06.

Tip direction can be freely set

Comparison of programming tasks

Conventional

・Operate the teaching pendant to visually specify the soldering points one by one and create a program.
- It takes time to create
・Variations occur due to visual alignment

LETHER-Navi Usage

- Use the mouse on the computer to specify the soldering points and create a program.
・Significantly reduces creation time
・Using NC data, soldering can be done in the correct position
